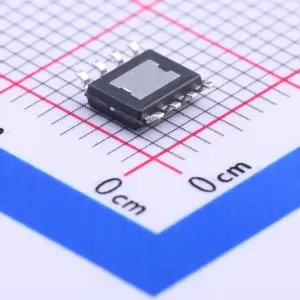

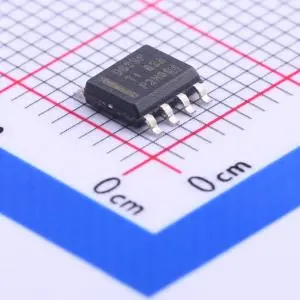

LMR14030SDDAR Switching Voltage Regulators IC REG BUCK ADJ 3.5A 8SOPWR

¥0.00 CNY

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	Switching Voltage Regulators
RoHS:
Mounting Style:	SMD/SMT
Package / Case:	SO-PowerPAD-8
Topology:	Buck
Output Voltage:	800 mV to 28 V
Output Current:	3.5 A
Number of Outputs:	1 Output
Input Voltage - Min:	4 V
Input Voltage - Max:	40 V
Quiescent Current:	40 uA
Switching Frequency:	2.2 MHz
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	LMR14030
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Height:	1.7 mm
Length:	4.9 mm
Moisture Sensitive:	Yes
Operating Supply Current:	40 uA
Product Type:	Switching Voltage Regulators
Shutdown:	Shutdown
	2500
Subcategory:	PMIC - Power Management ICs
Supply Voltage - Min:	4 V
Tradename:	SIMPLE SWITCHER
Width:	3.9 mm
Unit Weight:	0.004325 oz

Product features
